Water doser

The DOX 35 is the Doser of this Series. The delivery temperature is only measured and shown on the display. The structure is in ABS 4 and 5mm thick.

The DOMIX 35 is a Water Doser –Mixer with automatic thermostatic mixing. Structure in stainless steel, 1,5mm thick Microprocessor logic with permanent memory. Internal fittings in bronze, brass and stainless steel.

The DOMIX 45A has an automatic by-pass for draining of water not at set temperature, which can be controlled thermostatically or by time. The device has the double function of doser and microdoser: it is possible to set either large batches (up to 999,9l) at a resolution of tenth of litre, or small batches (up to 99,99l) at a resolution of centesimal of litre.

The DOMIX 45 is a Doser-Mixer, similar to the DOMIX 45 A, except for the automatic by-pass, substituted by a manual ball-tap and the lack of the micro-dosing function. The DOX 45 is the Doser of the 45 Series. The delivery temperature is only measured and shown on the display.

Water chiller

MODEL A/RDA200
They are designed to decrease the water temperature from +18°C to +3°C, required by the doughs to make the following working processes easier. They are completely built in stainless steel Aisi AISI 304 18/10 with tank capacity from 100 to 1000 Lts., operated by refrigerant R404a, cooling coil with stainless steel tubes dipped in the tank. A surge tank pump is included in the standard supply, starting automatically as the water cock opens and self-stopping as it closes. The temperature control takes place through a digital thermostat, while the uniformity of the water temperature is guaranteed by the circulation pump, that prevents ice formation. The range of chillers series Acquario RDA is completed by installation of the metering unit model HIDRA, or of the mixing / metering device model GEMMA.

MODEL RRC 35
They are designed to decrease quickly the water temperature from +18°C to +3°C, required by the doughs to make easier the following working processes. They are completely built in stainless steel Aisi AISI 304 18/10 with a powerful compressor operated by refrigerant R404a, cooling coil with stainless steel tubes dipped in the tank. The temperature control takes place through a digital thermostat, while the uniformity of the water temperature is guaranteed by the circulation pump, that prevents ice formation. The range of chillers series Quartz RRC is completed by the possibility of heating and proportioning the water thanks to a built-in metering system, as well as controlling the required temperature and quantity thanks to an easily programmable electronic board. They are also available in the following versions:

  • indirect water cooling
  • freon and water exchange double transfer system
  • ice melting with direct connection to the hydric net without the usage of the autoclave pump.

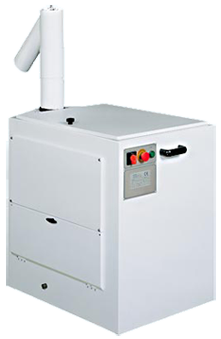

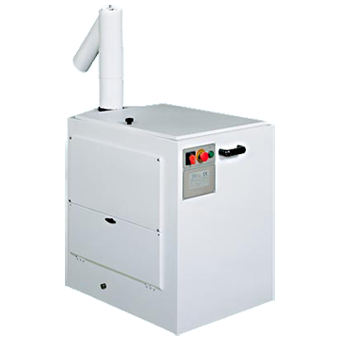

Flour duster

Automatic Dough Sheeter

The automatic dough sheeter, an exceptionally sturdy machine, is suitable for different types of soft and firm bread dough. This machine has its structure made of laser-cut, folded and electro-welded steel, finished in epoxy powder paint. Cylinders, head and carriage are made of stainless steel. During the working, the dough passes through three rollers, and then it is collected by a special carriage. A subsequent rotation of 90° places the dough on the belt again, in order to start a new working cycle. The machine is equipped with two adjusting levers: the first one, conveniently positioned, regulates the dough thickness; the second one fits the machine to the dough consistency. The machine has two timers to adjust the carriage and to stop kneading automatically after the working time set by the operator. It is equipped with wheels, two of which are fitted with brakes.
